1080P Mini Bullet Camera UVC/OTG 2MP Infrared Night Vision USB Camera

1080P Mini Bullet Camera UVC/OTG 2MP Infrared Night Vision USB Camera

ブランド名: HCVsight
モデル番号: hcu-btys202
MOQ: 50個
価格: US$47.29/50~199 pieces US$44.92/200~499 pieces US$40.59/500~999 pieces
支払条件: T/T
供給能力: 100000個/口
詳細情報
起源の場所:
深セン、中国
ピクセル:
2MP
互換性:
Windows/Mac OS/Linux/Android
フレームレート:
30fps
色:
製品の寸法:
30mm×77mm
センサータイプ:
CMOS
インタフェース:
タイプc
夜間視界機能:
サポート
パッケージの詳細:
紙の箱にstat骨袋bag袋110mmx93mm41mm)
供給の能力:
100000個/口
製品の説明

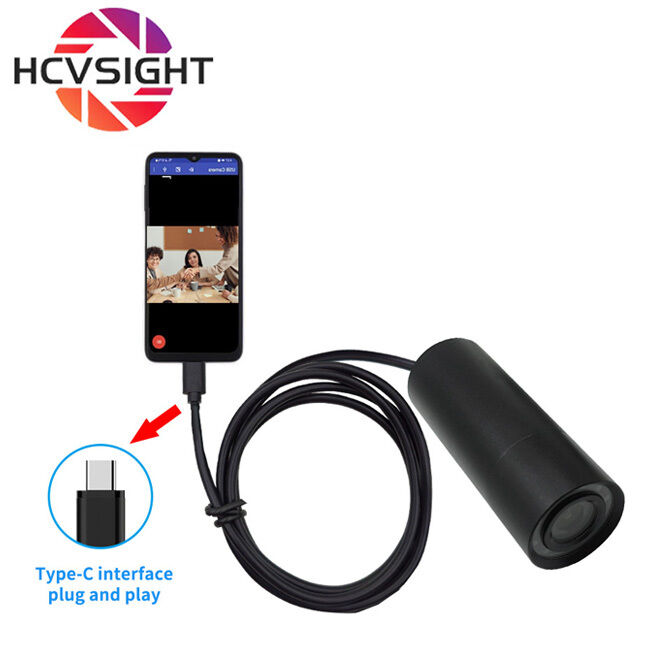

1080P Mini Bullet Camera UVC/OTG 2MP Infrared Night Vision USB Camera
Product Introduction

1080P Full HD Mini Metal Bullet Camera is a professional USB camera solution that combines high performance, durability, and portability. Featuring a high-quality metal casing, it is equipped with a 2-megapixel high-definition CMOS sensor and non ghosting infrared night vision function. It supports UVC no drive protocol and OTG connection. Plug and play, widely compatible with computers, Android smart devices, Linux systems, and various smart terminals, meeting your high-definition imaging needs in diverse scenarios such as security monitoring, video communication, and industrial testing.

Key Features

True 1080P high-definition picture quality: 2 million pixels output 1920 * 1080 full HD video, with clear presentation of details.
Powerful infrared night vision: Built in infrared filter, supports automatic switching, and achieves black and white high-definition monitoring in low light environments.
Drive free plug and play: Compliant with UVC standards, connecting to devices such as computers and smart TVs does not require the installation of additional drivers.
Wide OTG compatibility: Supports Android phone/tablet OTG direct connection, easily transforming into a mobile monitoring or live streaming device.
Metal sturdy shell: 30x77mm all metal body, good heat dissipation, sturdy and durable, effectively protecting internal components.
Type-C high-speed interface: mainstream Type-C interface, forward and reverse blind insertion, stable and convenient transmission.
Mini concealed design: Classic bullet shaped, compact and concealed, easy to install and deploy.

Technical Specifications
Parameter Specification
Sensor 1/2.9"
Resolution 2MP (1920x1080 @30fps)
Compression Format MJPG/YUV2
Operating Voltage DC 5V
Dimensions 30mm×77mm (base not included)
Operating Temperature Up to 70°C
Interface type-c
Night Vision 10× 940nm IR LEDs with auto day/night switching
Supported OS Windows XP/7/8/10, Mac OS, Linux, Android
Customization Options
  • Interface options: USB 2.0, Type-C, or Android OTG
  • Cable customization: 1-10m industrial-grade cables available
  • Lens options: 2.8mm wide-angle or 3.6mm standard
  • Full OEM/ODM support for housing, resolution, packaging, and firmware
Applications
  • Machine Vision: Production line inspection, precision measurement, robotics, defect detection
  • Industrial Monitoring: Equipment status, clean room inspection, hazardous environment recording
  • Smart Office: Video conferencing, medical imaging, education recording systems
  • Special Applications: Vehicle monitoring, agricultural IoT, microscopy integration
Support & Services

Our comprehensive support package includes:

  • Online documentation and user manuals
  • Email and phone technical support
  • Remote desktop assistance
  • Product training and customized solutions

Download: 3.6mm Lens Specification (PDF) | Product List (XLS)
